Fields of application
• Foundation for heavily loaded columns
• Direct contact pile – column
• Withstand very high loads or horizontal moments
• Resist high traction values

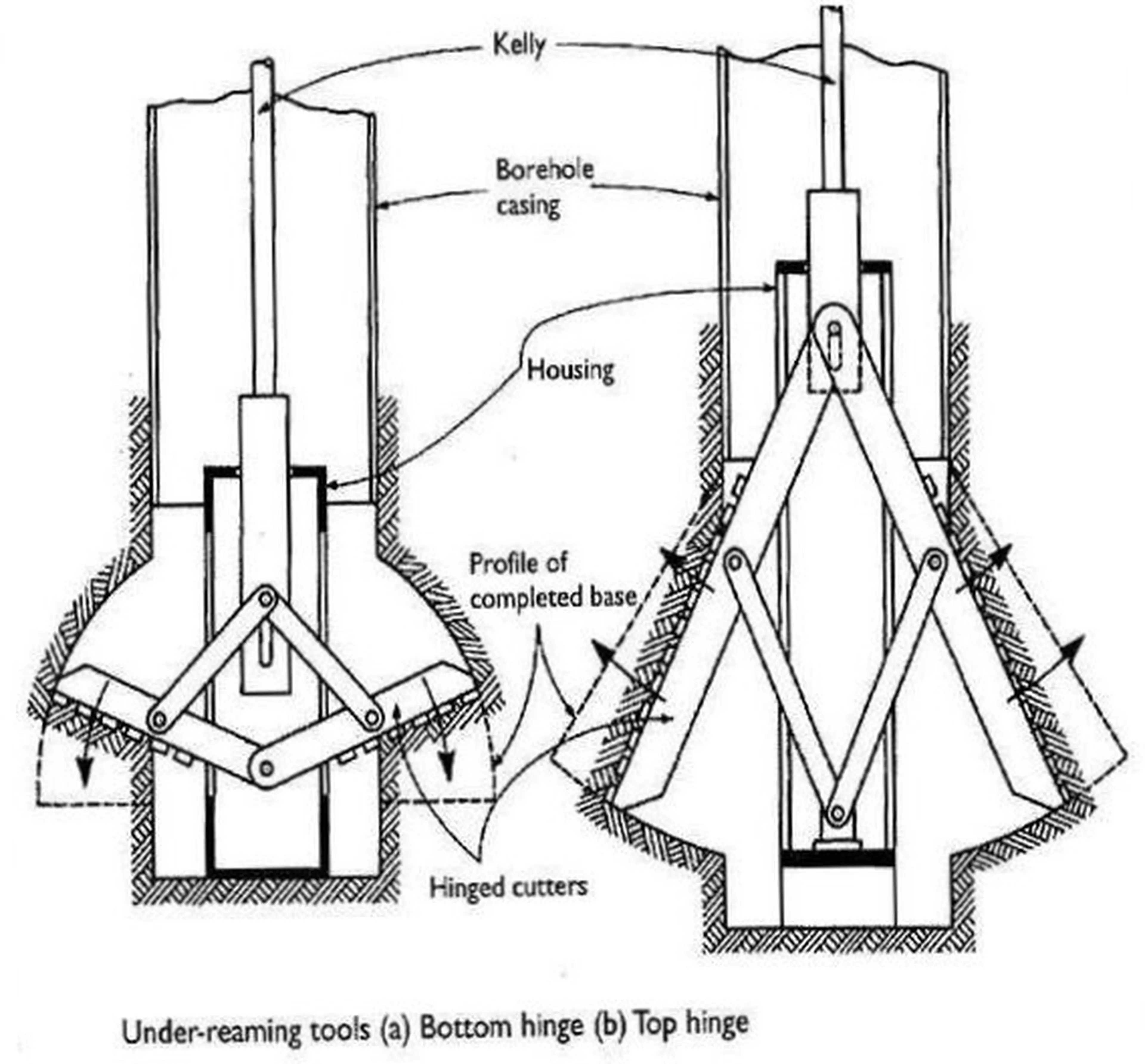

• The nature of the soil at design depth should allow for the formation of an enlarged pile base
Environmental impact
• Vibration-free installation
• Low noise pollution
• Removal of spoil (pile with soil extraction) and of drilling and/or support fluid from the job site is required
• The water table must be located at least 1 m below the working level
• Workspace surface minimum requirement of 17 m: minimal 15 m from the axis of the wall and 2 m in front of the wall
• A stable, dry and flat work platform is required
